Multi-Agent Post-Processing Pipeline for Non-Native English ASR

---

Abstract

Despite advances in automatic speech recognition (ASR), large models like Whisper exhibit higher Word Error Rates (WER) for non-native English speakers, creating fairness and accessibility concerns. We propose a multi-agent post-processing pipeline that improves ASR accuracy for non-native speakers without retraining the underlying model. Our system consists of three specialized agents: (1) a BERT-based Error Analysis Agent that detects and classifies token-level errors, (2) a Correction Agent that applies rule-based fixes and T5-based grammar correction using detected error labels, and (3) an Evaluation Agent that measures improvements and provides feedback. On our L2-ARCTIC pilot dataset (100 samples from Mandarin Chinese and Arabic speakers), we demonstrate the feasibility of learned error detection and establish baseline metrics for accent-aware correction.

---

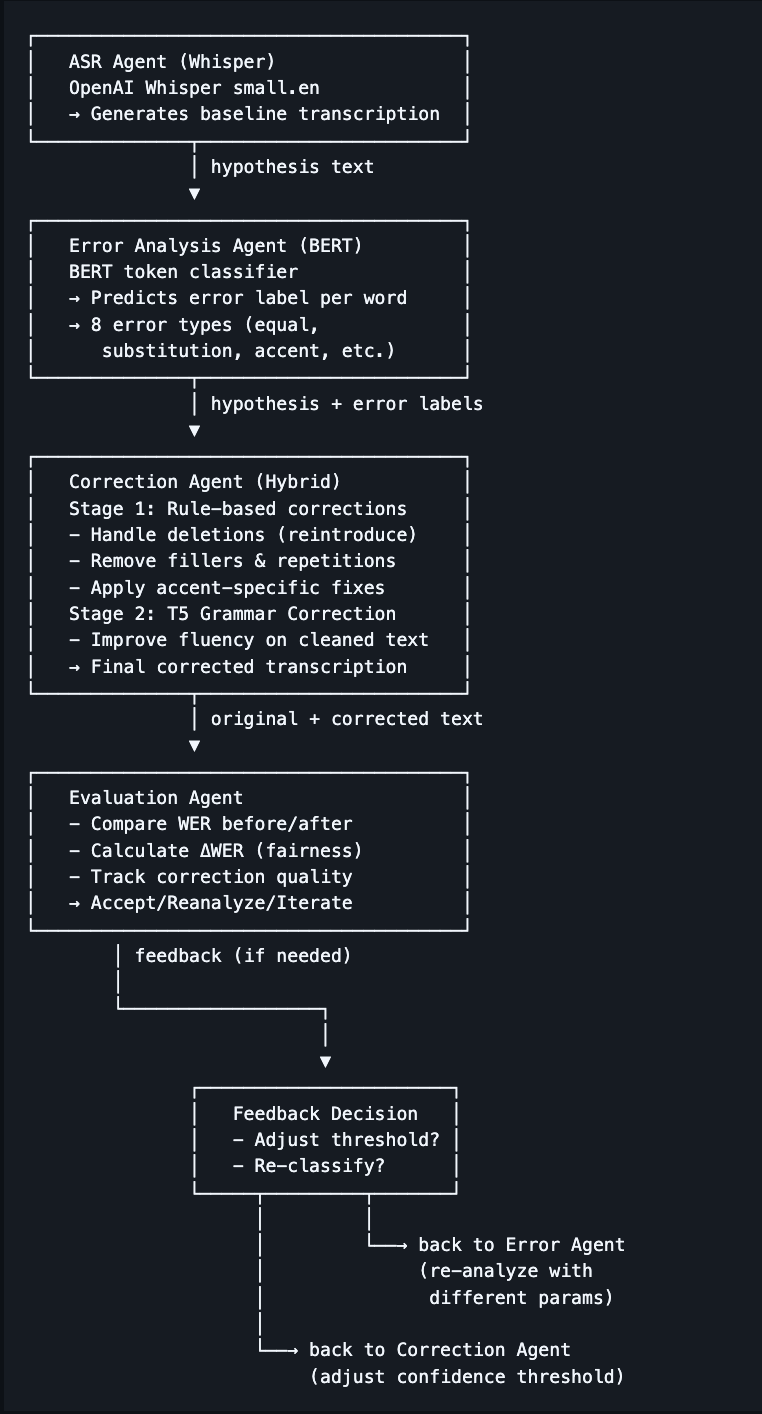

System Overview

Our multi-agent pipeline operates entirely on text after ASR transcription, making it model-agnostic and computationally efficient.

Key Innovation: Agent-Based Architecture

Unlike monolithic correction systems, our modular design allows each agent to specialize:

• Error Analysis Agent (BERT-based): Token classifier trained on 8 error types (equal, substitution, accent_pronunciation, homophone, deletion, insertion, repetition, filler). Takes ASR hypothesis and predicts error labels for each word.
• Correction Agent (Hybrid): Two-stage correction process:
  1. Rule-based corrections guided by BERT error labels (removes deletions, fillers, repetitions, applies accent-specific fixes)
  2. T5 grammar correction model for fluency improvement on the cleaned text
• Evaluation Agent: WER-based metrics with fairness analysis (ΔWER) and feedback loop triggering

---

Motivation

What problem are we solving?

Current ASR systems perform significantly worse on non-native English speech, with WER gaps of 20-50% compared to native speakers. Fine-tuning models is computationally expensive and requires large amounts of accent-specific data. Moreover, fine-tuned models lack transparency about what was improved.

Why does it matter?

Fair and accurate ASR is critical for education (language learners), accessibility (voice interfaces), and professional settings (international workplaces). Our approach provides an interpretable, efficient, and portable solution that works with any ASR system.

Current limitations of existing approaches:

• Model retraining: Requires 50+ hours of data, expensive GPU compute, and produces opaque improvements
• Rule-based correction: Limited to predefined patterns, cannot adapt to new error types
• Monolithic neural correction: End-to-end systems that lack interpretability and require parallel training data

---

Our Approach

1. Data Preparation & Baseline Establishment

We sampled 100 utterances from the L2-ARCTIC dataset (scripted non-native English speech) from two speakers: NCC (native Mandarin Chinese speaker). We established baseline metrics using OpenAI Whisper (small.en):

2. Error Analysis Agent (BERT Token Classifier)

We manually annotated all 100 samples with word-level error labels, creating 902 total token annotations. Our comprehensive taxonomy includes 8 error types covering both standard ASR errors and accent-specific patterns:

Error Type	Count	Percentage	Description
equal	817	90.1%	✓ Correct transcription (majority class)
substitution	45	5.0%	Word replaced with different word
accent_pronunciation	17	1.9%	Accent-driven phonetic error (e.g., "color" → "cooler")
homophone	10	1.1%	Sound-alike substitution (e.g., "20th" vs "twentieth")
deletion+equal	7	0.8%	Missing word (label concatenated with next token)
insertion	3	0.3%	❌ Extra word inserted (insufficient for learning)
substitution+deletion	1	0.1%	Compound error
repetition+equal	1	0.1%	Disfluency: word repetition
equal+repetition	1	0.1%	Disfluency: word repetition (variant)

Key Innovation: Our deletion handling concatenates the deletion label with the next word's label (e.g., deletion+equal), keeping all annotations aligned with the hypothesis tokens rather than requiring complex realignment with the reference text.

3. Phoneme Confusion Matrix Analysis

We extracted accent-specific phoneme confusion patterns for speaker NCC (native Mandarin Chinese) by aligning ASR errors with phonetic transcriptions. These patterns guide the Correction Agent's rule-based fixes:

4. Correction Agent (Hybrid Rule-Based + T5)

Our Correction Agent implements a novel two-stage correction pipeline that uses BERT error labels to guide both rule-based and neural corrections:

Current Implementation Status: The Correction Agent is fully implemented and operational. It currently uses manually annotated error labels from the CSV. Once the BERT classifier generates predicted labels, they will be plugged in seamlessly using the same interface.

5. Evaluation Agent & Feedback Loop

The Evaluation Agent compares WER before and after correction, tracking:

• Overall WER reduction: Primary accuracy metric
• ΔWER (fairness metric): max(WER) - min(WER) across speakers/accents
• Correction quality: % helpful vs. harmful vs. neutral corrections
• Per-speaker performance breakdown: Which speakers benefit most?

Based on these metrics, the agent decides whether to:

• Accept: Corrections improved WER → done
• Adjust & Re-correct: Increase Correction Agent confidence threshold and reapply
• Re-analyze: If systematic errors detected, may trigger Error Agent to re-classify with adjusted parameters

Current Status: WER calculation and per-speaker metrics are complete. Feedback loop integration is in progress.

---

Current Status (Midterm Checkpoint)

---

Next Steps & Timeline

Immediate Goals (By Final Submission - December 2024)

Expected Final Results

Based on related work (e.g., LearnerVoice fine-tuning reduced WER by 44% with 50 hours of data), we anticipate the following improvements over baseline Whisper:

Metric	Current (n=100)	Expected (n=2000-5000)
WER Reduction	TBD (integration pending)	15-30% relative improvement
ΔWER (Fairness)	TBD	20-40% reduction in speaker gap
Correction Quality	TBD	>70% helpful, <10% harmful
Inference Latency	TBD	<200ms per utterance (BERT + T5)
BERT Error Classifier	Eval loss: 3.01 (overfitting)	Eval loss: <1.0 (generalizing)

Note on Dataset Size: The LearnerVoice paper demonstrated that 50 hours of spontaneous L2 speech (approximately 5000+ utterances) achieved strong fine-tuning results. Given the extreme class imbalance in our task, we estimate 2000-5000 annotated utterances will be necessary for the BERT classifier to learn rare error types effectively.

---

Current Limitations & Mitigation Strategies

---

Novel Contributions

1. Multi-Agent Architecture: First post-ASR correction system with specialized, communicating agents and feedback loops (to our knowledge)
2. Hybrid Correction Strategy: Novel combination of BERT-guided rule-based corrections + T5 grammar improvement, avoiding over-correction pitfalls
3. Comprehensive Error Taxonomy: 8-class error classification covering accent-specific errors, disfluencies, and standard ASR errors in a unified framework
4. Innovative Deletion Handling: Concatenating deletion labels with subsequent tokens (e.g., deletion+equal) keeps all annotations aligned with hypothesis, avoiding complex realignment
5. Fairness-Focused Evaluation: Explicit measurement of ΔWER to quantify equity improvements across speaker groups, not just overall accuracy
6. Model-Agnostic Design: Works with any ASR system (Whisper, Wav2Vec, commercial APIs) without retraining the underlying model

---

Team Contributions

• Rishabh Agarwal: Dataset acquisition and preparation, ASR baseline transcription using Whisper, multi-agent pipeline setup and integration, website development
• Ella Boytim: Manual error annotation and taxonomy design, BERT-based Error Analysis Agent implementation and training, evaluation metrics design
• Sharon Soedarto: Correction Agent development (hybrid rule-based + T5 grammar correction), phoneme confusion matrix analysis, technical documentation

All team members contributed equally to experimental design, code review, results analysis, and report writing.

---

Key References

1. Radford, A., Kim, J. W., Xu, T., Brockman, G., McLeavey, C., & Sutskever, I. (2023). "Robust Speech Recognition via Large-Scale Weak Supervision." OpenAI Whisper Technical Report. arXiv:2212.04356.
2. Kim, J., Myung, J., Kang, D., Lee, H., & Kim, J. (2024). "LearnerVoice: A Dataset of Non-Native English Learners' Spontaneous Speech." Proceedings of EMNLP 2024. arXiv:2407.04280.
3. Zhao, G., Sonsaat, S., Silpachai, A., Lucic, I., Chukharev-Hudilainen, E., Levis, J., & Gutierrez-Osuna, R. (2018). "L2-ARCTIC: A Non-Native English Speech Corpus." Proceedings of Interspeech 2018, pp. 2787-2791.
4. Koenecke, A., Nam, A., Lake, E., Nudell, J., Quartey, M., Mengesha, Z., Toups, C., Rickford, J. R., Jurafsky, D., & Goel, S. (2020). "Racial Disparities in Automated Speech Recognition." Proceedings of the National Academy of Sciences (PNAS), 117(14), 7684-7689.
5. Feng, S., Kudina, O., Halpern, Y., & Scharenborg, O. (2021). "Quantifying Bias in Automatic Speech Recognition." Proceedings of Interspeech 2021, pp. 3810-3814.
6. Mozilla Foundation (2024). "Mozilla Common Voice 15.0." HuggingFace Datasets. Available: https://huggingface.co/datasets/mozilla-foundation/common_voice_15_0
7. Devlin, J., Chang, M. W., Lee, K., & Toutanova, K. (2019). "BERT: Pre-training of Deep Bidirectional Transformers for Language Understanding." Proceedings of NAACL-HLT 2019, pp. 4171-4186.

---

Acknowledgments

We thank Professor Dongyang Kang and TAs Shuyu Gan and Drew Gjerstad for their invaluable guidance, feedback, and support throughout this project. We also acknowledge the creators of L2-ARCTIC (Zhao et al., 2018), LearnerVoice (Kim et al., 2024), and Mozilla Common Voice (Mozilla Foundation, 2024) for making their datasets publicly available for research. Computational resources for this project were provided by Google Colab (T4/A100 GPUs).

---
